Features/Functions
1. COFDM modulation,
2. H.264/MPEG self-adaption compression;
3. Support NLOS, high-speed mobile transmission;
4. Small dimension, light weight, easy to carry, heat dissipation of aluminum case;
5. High performance, high capacity power of Li battery(replaceable);
6. Narrow bandwidth for expended range, and different video resolution;
Radio Frequency Intercom System 5.8ghz Video Drones with Long Flight Time Point to Point 1080p Video Transmitter
Features:
1. COFDM modulation, H.264 compression;
2. Support 1080P/720P resolution;
3.High performance, high capacity power of Li battery(replaceable);
4. Narrow bandwidth for expended range, and different video resolution;
5. High performance,high capacity power of Li-battery (replaceable);
6. Small dimension,light weight,easy to carry ,heat dissipation of aluminum case;

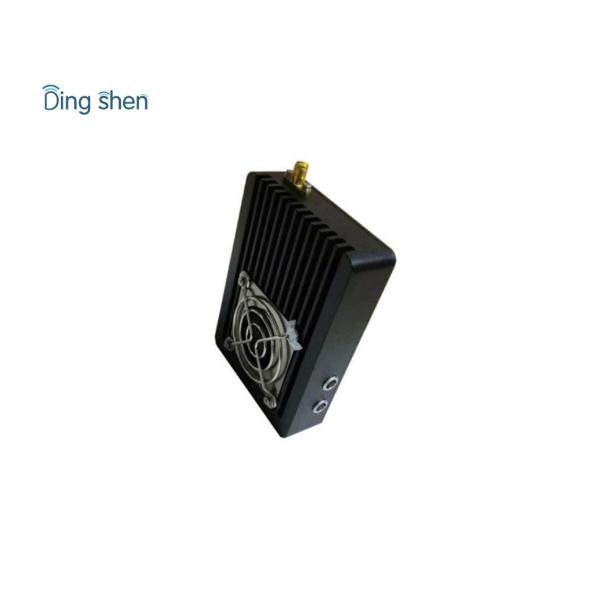

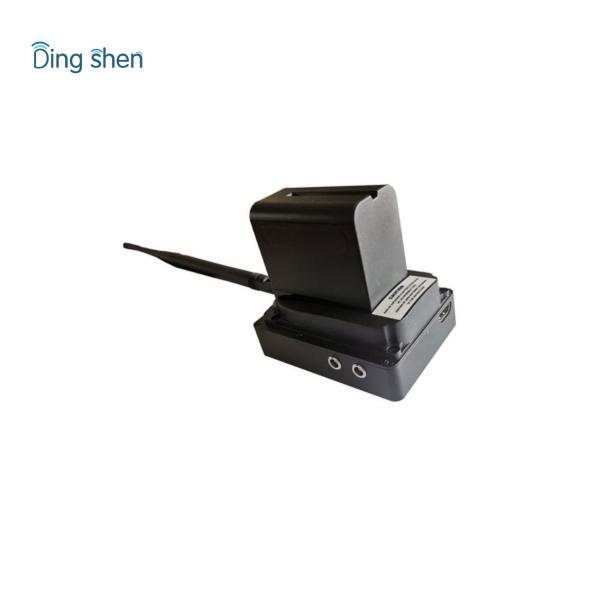

Transmitter parameter:
| Frequency | 300-900Mhz or other frequency customized |
| Modulation | COFDM |
| Consumption | <40W |
| Encryption | AES 128 bits |
| Constellation | QPSK(4QAM),16QAM,64QAM |
| FEC | 1/2 2/3 3/4 5/6 7/8 |
| Guard Interval | 1/32 1/16 1/8 1/4 |
| Carrier | 2K,8K |
| Bandwidth | 2/3/4/6/7/8MHz (option) |
| Transfer rate | 6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M |
| RF power | 1 watt |
| Video input | HDMI |
| Video coding | MPEG-4/H.264 |
| Video resolution | 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL |
| Working voltage | DC12V |
| Working Temperature | -20℃ -- +55℃ |
| Dimension | 72*98*32mm |
| Weight | 190g without battery; 250g with battery |
| Box colour | Black |
| Antenna port | N type |
Receiver parameter:
| Frequency | 300-900Mhz (option) or other frequency customized |
| Bandwidth | 2/3/4/5/6/7/8MHz (option) |
| RF input level | -94dBm~0dBm(8M)/-98dBm~0dBm(2M) |
| RF input impedance | 50Ω |
| RF input type | N type |
| Modulation | COFDM |
| Constellation | QPSK,16QAM,64QAM(adjustable) |
| FEC | 1/2,2/3,3/4,5/6,7/8(adjustable) |
| Carrier | 2k |
| Guard Interval | 1/32,1/16,1/8,1/4(adjustable) |
| Video coding | MPEG-4/H.264 |
| Screen | 4:3 16:9 |
| Video resolution | 1920*1080P/I@4Mhz |
| Audio output | Stereo unbalance 300/ 200mv |
| AV output | 2 Audio output + 2 Video output; HDM-I |
| Working voltage | AC220V/DC12V <1A |
| working temperature | -20℃~+50℃ |
| Dimension | 483*300*44mm |
| Weight | 1.5kg |
